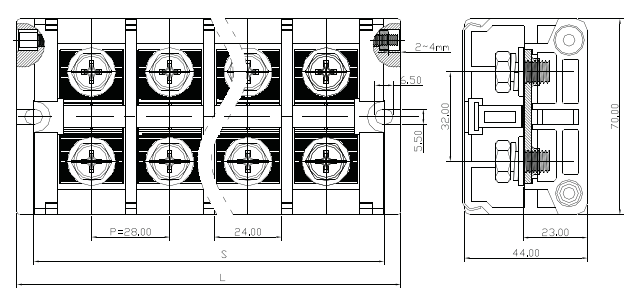

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
總長L |
81.5 |
109.5 |
137.5 |
165.5 |
193.5 |
221.5 |
249.5 |
277.5 |
305.5 |
333.5 |
361.5 |
389.5 |
417.5 |
445.5 |
473.5 |
|
|
固定孔距s |
69.5 |
97.5 |
125.5 |
153.5 |
181.5 |
209.5 |
237.5 |
265.5 |
293.5 |
321.5 |
349.5 |
377.5 |
405.5 |
433.5 |
461.5 |
|
端子間距(Center Spase) |
28. 0mm |
|
壓線範圍(Wire Range) |
60mm2(Max) |
|
螺釘扭距(Screw Torque) |
40 Ibf. in |
|
額定電流(Rated Current) |
600V,150A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M8,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
